Prepare the Components

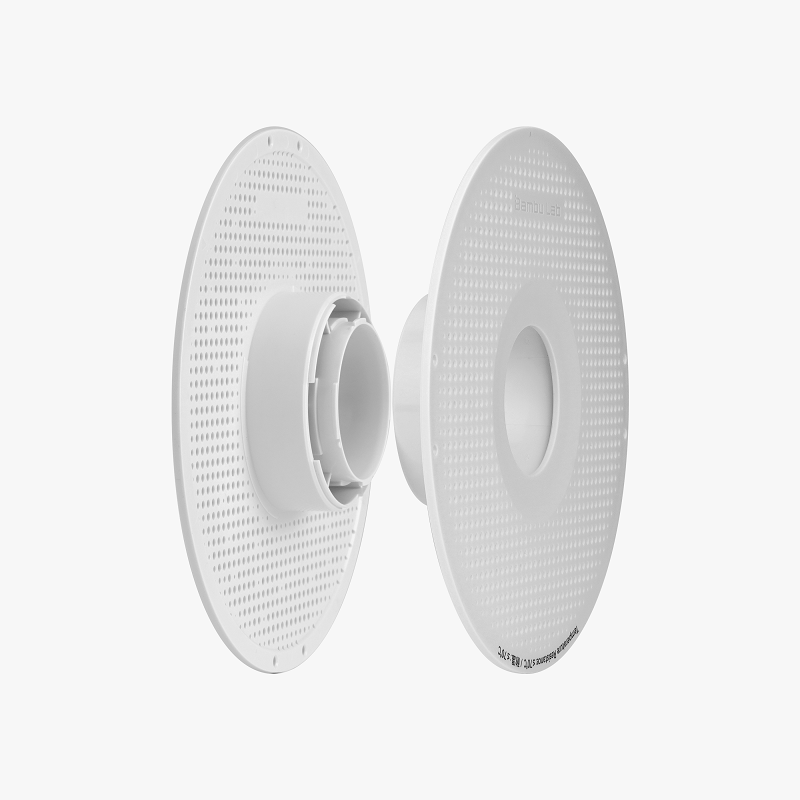

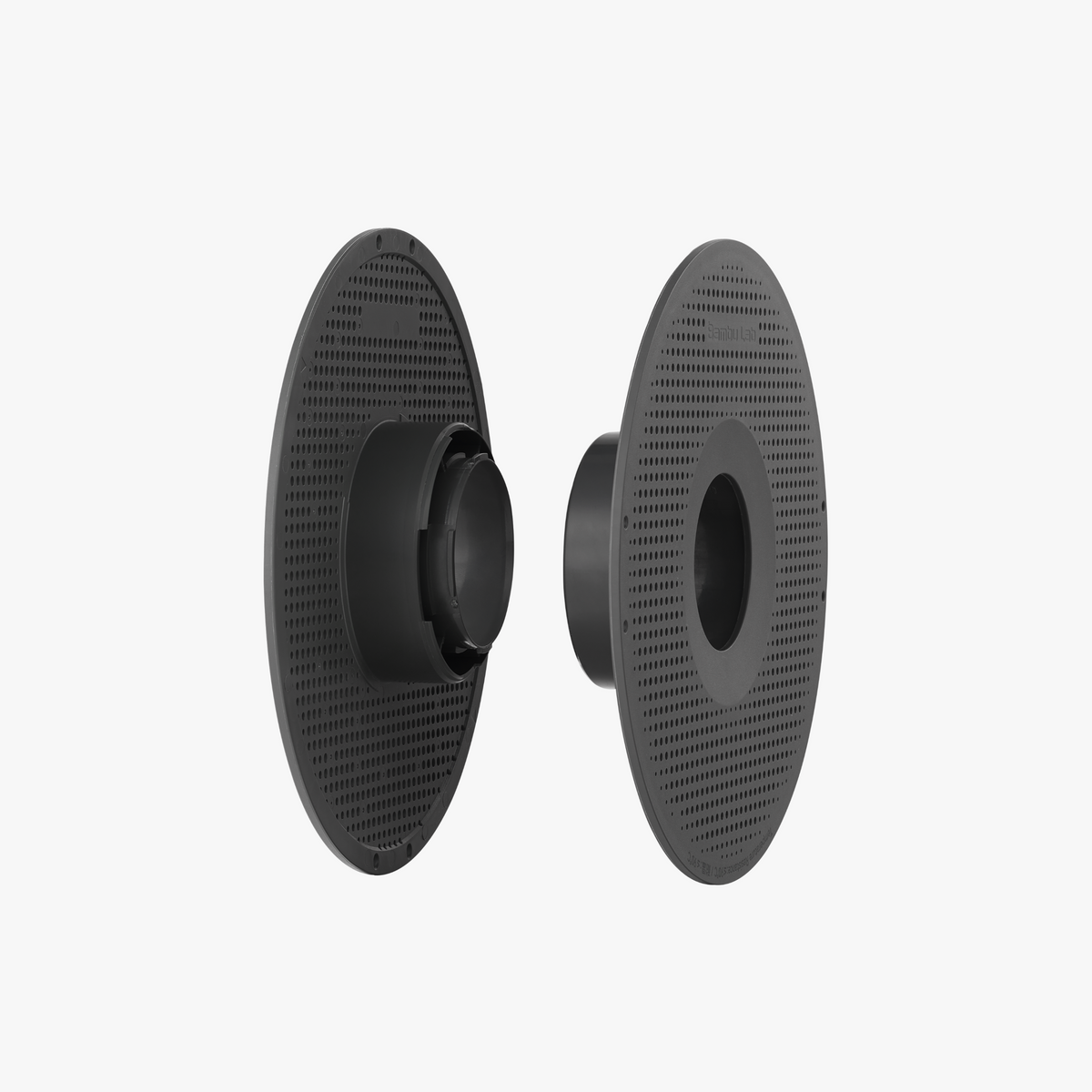

When you're finished printing, you will have a wide piece (1x), narrow piece (1x), and spacing shim (2x).
TECHNICAL DETAILS
Specification
| Low Temp (≤70°C) | High Temp (≤90°C) | |
|---|---|---|
| Materials | ABS | ABS+PC |
| Packing Size | 200 × 200 × 67 mm | 200 × 200 × 67 mm |
| Weight | 250 g | 250 g |
| Color | White | Black |
| Filament Compatibility | PLA, PETG | PLA, PETG, ABS, ASA, PA6-GF, ABS-GF, PAHT-CF, PET-CF, PA6-CF, PC, TPU |
INSTALLATION GUIDE
Simple by design.
Instructions for Printed Spool
Align the Locator
Find the locator (a tiny block on the wide piece). Align it with the notch on the inner ring of the filament roll. Insert the wide piece into the filament roll.
Insert & Lock
Insert the narrow piece into the wide piece. Push firmly and rotate the narrow piece clockwise until it slides into place and you hear it lock.
Secure the Spool
Make sure the spacing shim is installed inside the spool, under the triangle. Then tear apart and remove the plastic retaining strips.
FILAMENT REFILL
See how it works.
Learn how to swap a filament refill using the Bambu Reusable Spool.
