Large-format.
High-temperature.
Built for production.
Industrial large-format FFF engineered for PEEK, PEKK, PEI and other high-performance polymers — combining a 300°C heated chamber, 500°C dual extrusion and 610 × 508 × 508 mm build volume.
610 × 508 × 508 mm
Large-format capacity for full-size parts and batch production.
Up to 300°C
Uniform high-temperature environment for demanding polymers.
Up to 500°C
High-temperature model and support material workflows.
36 Materials
From standard engineering plastics to PEEK, PEI and PPSU.
From PEEK
to PEI.
Built around high-temperature polymer processing, FUNMAT PRO 610HT provides the thermal environment required for demanding industrial materials and large functional components.
300°C.
Built for high-performance polymers.
Printing PEEK, PEKK and PEI at large scale requires more than a high-temperature nozzle. FUNMAT PRO 610HT creates a uniformly heated environment throughout the build chamber to support demanding high-temperature polymer applications.
Print larger.
Print more.
Large-format capacity creates two different production advantages: manufacture substantial parts as a single component, or use the same platform for multi-part production.
Print Larger
Produce larger components without splitting the design into multiple sections, reducing assembly and simplifying post-processing.
Print More
Use the large platform to manufacture multiple parts simultaneously while maintaining consistent material conditions across the same build.
Large doesn't mean less precise.
Closed-loop servo control combined with a high-precision ball screw drive system improves positioning accuracy across the large-format build platform — supporting dimensional accuracy and superior surface finish.
Complex geometry.
Cleaner surfaces.
Dual-nozzle support workflows make it possible to handle internal channels, overhangs and complex structures while improving the finish of supported surfaces.
Water-Soluble Support
Suitable for difficult-to-access structures such as internal piping and channels where manual support removal may not be practical.
Easy-to-Breakaway Support
Dedicated support material simplifies removal and helps reduce roughness on support-contact surfaces.
Built to keep production moving.
Intelligent material handling, nozzle management and thermal control are designed to reduce interruptions during long-duration industrial printing.
Auto-Cleaning Nozzles
Automated nozzle cleaning supports reliable long-duration extrusion.
Filament Auto-Reloading
Material management supports longer continuous production workflows.
Jam Warning
Detects abnormal filament feeding conditions that require operator attention.
Filament Absence Warning
Alerts operators when the material supply requires attention.
High heat.
Controlled cooling.
The liquid-cooling system improves heat dissipation around the extrusion system, helping prevent filament jamming and supporting prolonged component service life under high-temperature operating conditions.
Your application.
Your material choice.
FUNMAT PRO 610HT supports an open filament strategy, giving engineering teams greater flexibility to select materials according to mechanical, thermal, chemical and cost requirements.
From preparation
to monitoring.
INTAMSUITE NEO brings model preparation, slicing, process optimization and online monitoring into one integrated industrial additive manufacturing workflow.
Built around high-temperature operation.
FUNMAT PRO 610HT incorporates industrial safety controls designed around the demands of an ultra-high-temperature production environment.
Electromagnetic Safety Locks
Upgraded safety locking for both front and top doors.
Independent Safety PLC
Dedicated safety control architecture for industrial operation.
Redundant Safety Sensors
Chamber temperature sensor combined with a temperature limiter.
Optimized Electrical Control
Redesigned electrical architecture for different operating cases.

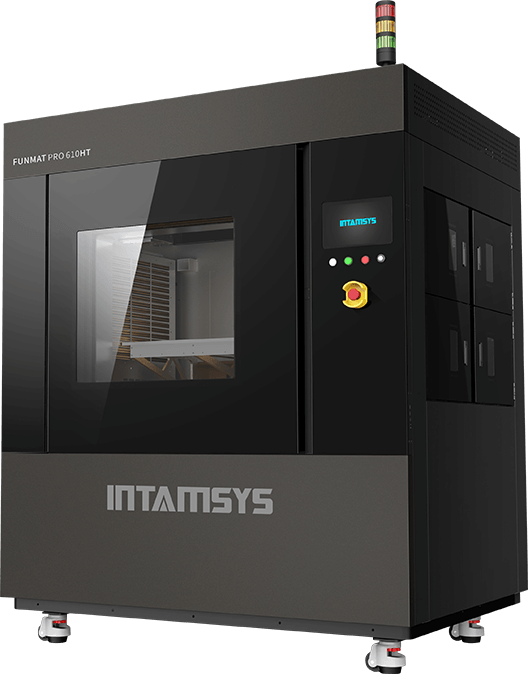

FUNMAT PRO 610HT.
| Printing Technology | Industrial FFF / FDM |
|---|---|
| Build Volume | 610 × 508 × 508 mm |
| Extrusion System | Industrial dual extrusion |
| Maximum Extruder Temperature | Up to 500°C |
| Maximum Chamber Temperature | Up to 300°C |
| XY Axis Precision | 12.5 μm |
| Z Axis Precision | 1.25 μm |
| Motion System | Closed-loop servo control with high-precision ball screw drive |
| Compatible Materials | 36 listed compatible materials including PEEK, PEEK-CF, PEEK-GF, PEKK, PEI 1010, PEI 9085, PPSU, PPS, PPA-CF, PPA-GF, PA-CF, PC, ABS, ASA and more. |
| Support Material Workflows | Water-soluble and easy-to-breakaway support materials |
| Thermal Management | Liquid-cooled extrusion system |
| Software | INTAMSUITE NEO |
| Printer Dimensions | 1710 × 1425 × 2080 mm |
| Dimensions with Lighthouse | 1710 × 1425 × 2350 mm |
| Weight | 1450 kg |
Planning a large-format PEEK or PEI application?
Send us your part dimensions, material, application and production requirements. Our team can help evaluate the printing process, material selection and whether FUNMAT PRO 610HT fits your manufacturing workflow.
