High-detail scanning for professional 3D modeling.

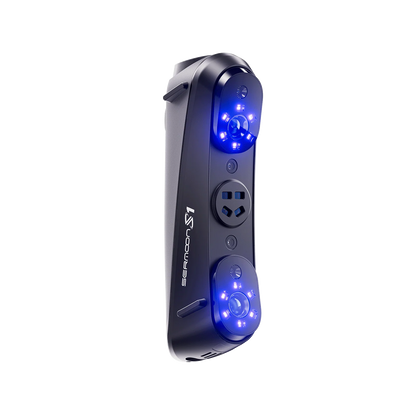

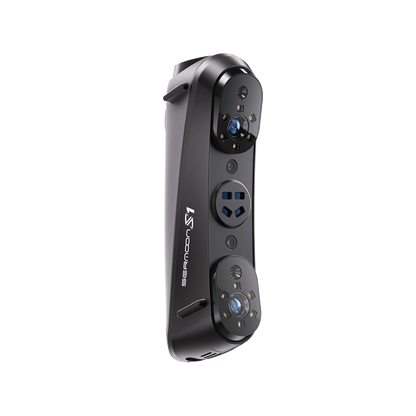

Creality Sermoon S1 3D Scanner combines high-precision laser scanning and NIR structured light to capture detailed 3D data for design, reverse engineering, 3D printing and digital modeling.
Capture complex surfaces with confidence.
Designed for accurate data capture, Sermoon S1 helps users scan mechanical parts, prototypes, product models and detailed objects with clean geometry for downstream design workflows.
Built for both precision and versatility.
The scanner uses high-precision laser scanning together with NIR structured light, giving users more flexibility when capturing different object types, sizes and surface details.
Move from real object to digital model faster.
Fast data capture helps shorten the workflow from physical object scanning to editable 3D data, making it useful for product design, repair, inspection and 3D printing preparation.

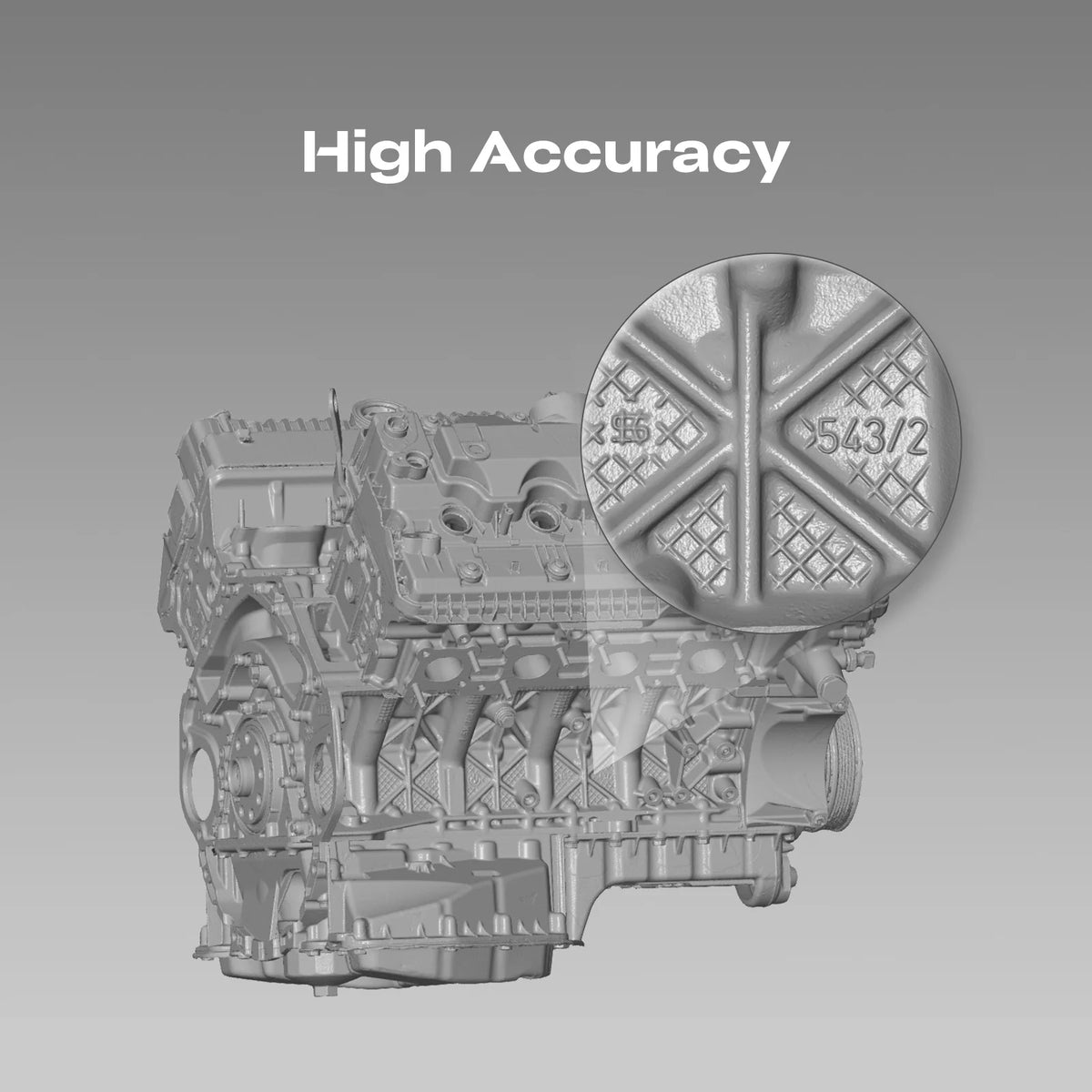

High Detail
Capture detailed object geometry for modeling, reverse engineering and 3D printing workflows.
Laser + NIR
Combines high-precision laser scanning with NIR structured light for versatile scanning tasks.
Fast Capture
Designed to collect 3D data efficiently and support faster digital reconstruction workflows.
Professional Use
Suitable for engineering, design, digital archiving, repair, prototyping and product development.
Versatile to the core, accurate evermore.

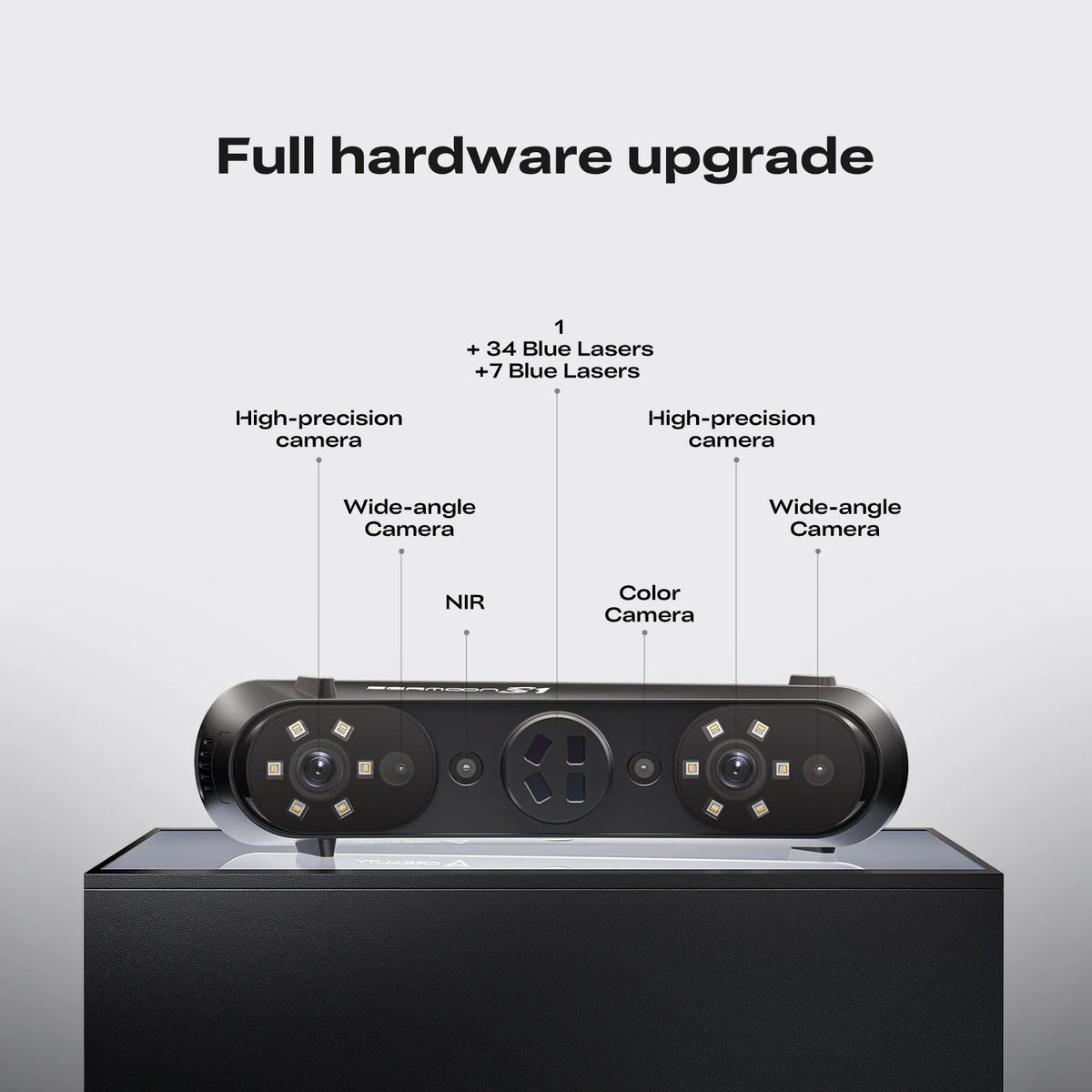

Creality Sermoon S1 combines 1 single blue laser line, 7 parallel blue laser lines, 34 cross blue laser lines and NIR structured light to capture detailed 3D data for reverse engineering, inspection, design and 3D printing workflows.

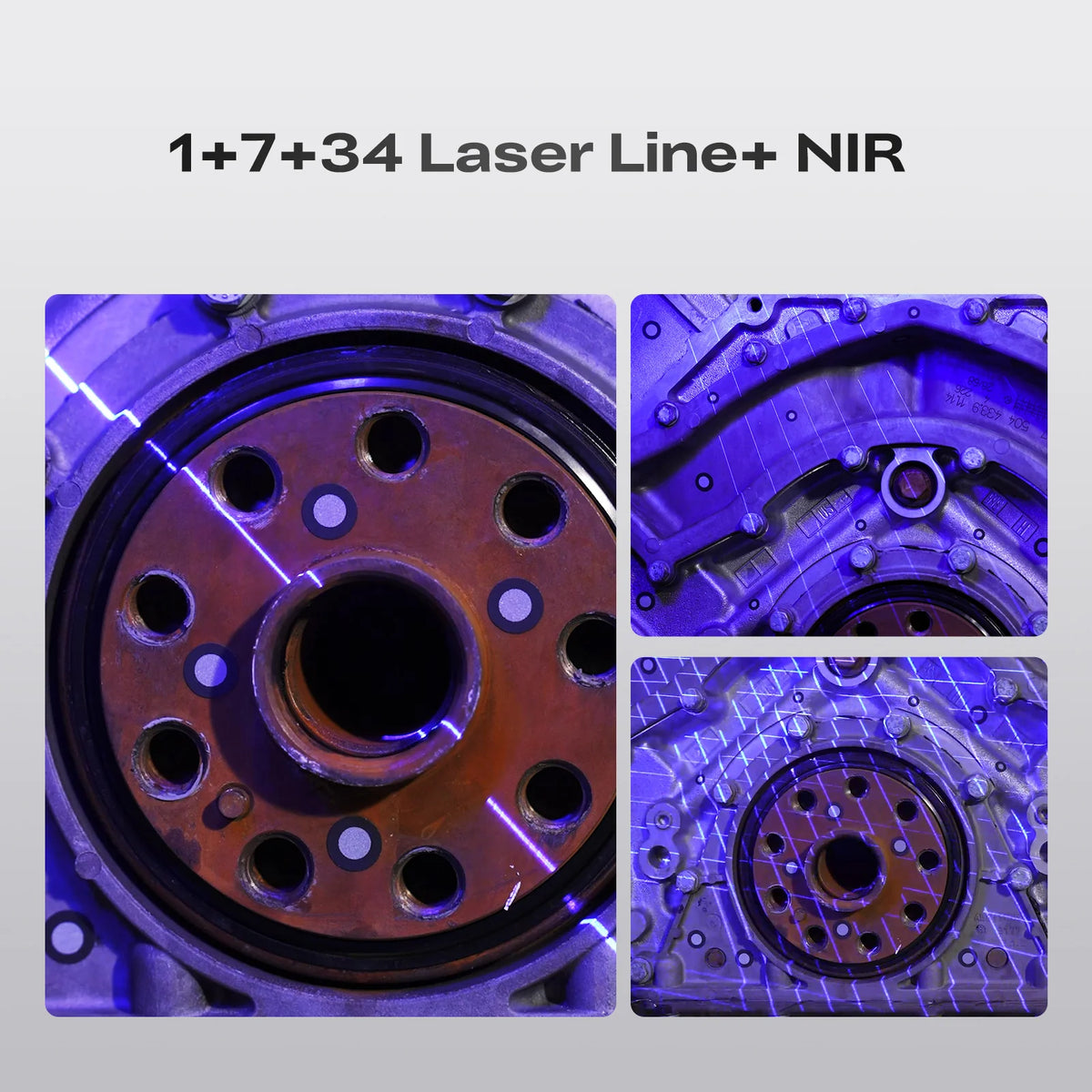

1+7+34 Laser Line + NIR
Choose the right mode for every object.
Sermoon S1 offers multiple scan modes to balance accuracy, speed, object size and surface detail.
Single Blue Laser Line
Best for fine details, deep holes, grooves and narrow features.
- Accuracy: up to 0.02mm
- Resolution: 0.05 - 2mm
- Working distance: 200 - 600mm
- Alignment: Marker / Global Marker
7 Parallel Blue Laser Lines
Suitable for fast detailed scanning of parts and product surfaces.
- Scanning rate: 756,000 measurements/s
- Scanning speed: up to 90FPS
- Working distance: 150 - 400mm
- Outdoor scanning: below 50,000 lux
34 Cross Blue Laser Lines
Efficient for capturing overall geometry of medium to large objects.
- Scanning rate: 1,428,000 measurements/s
- Volumetric accuracy: 0.02mm + 0.08mm/m
- Working distance: 200 - 600mm
- Large-area geometry capture

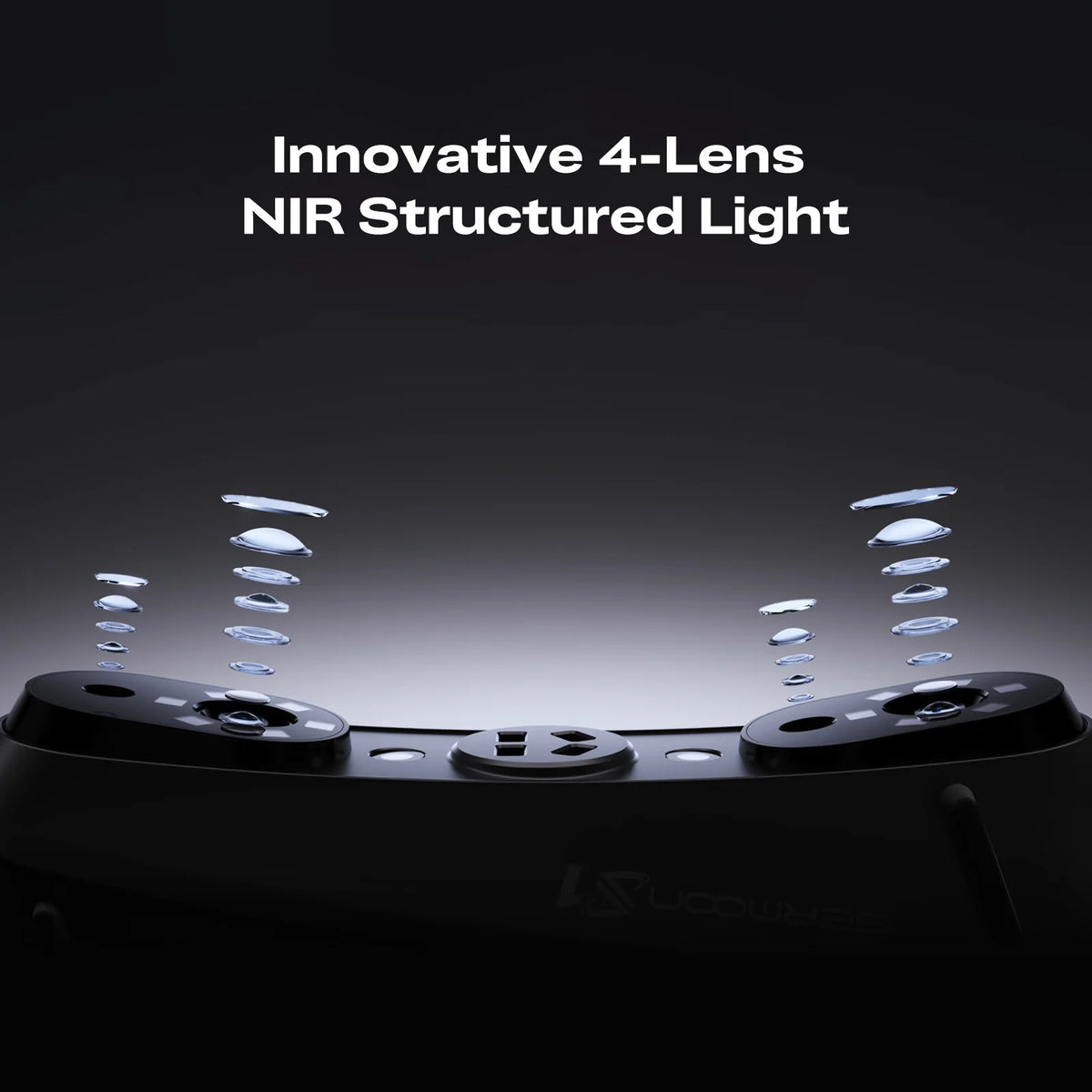

NIR Structured Light
Designed for efficient scanning of larger objects and marker-free workflows.
- Accuracy: up to 0.075mm
- Scanning rate: 4,600,000 measurements/s
- Close range: 170 - 500mm
- Long range: 200 - 1200mm

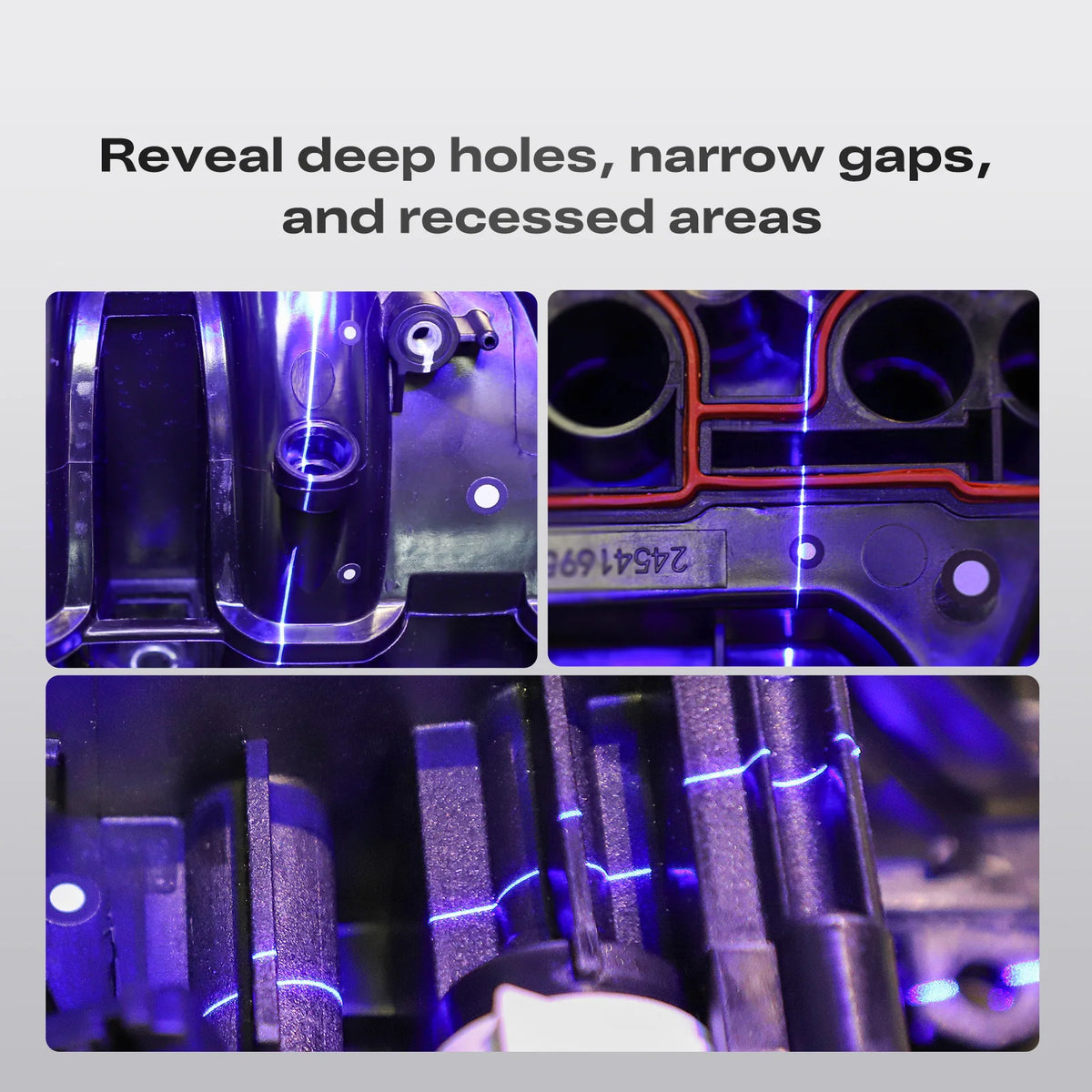

Reveal deep holes, narrow gaps, and recessed areas
Equipped with a precise single-line blue laser and an optimized optical path, the Sermoon S1 excels at scanning deep holes, narrow gaps, and recessed areas-capturing intricate details in hard-to-reach spaces with uncompromising accuraccy.
90FPS High-Speed Scanning
Achieve data acquisition speeds of up to 1,428,000 points per second and a maximum scanning frame rate of 90 frames per second.

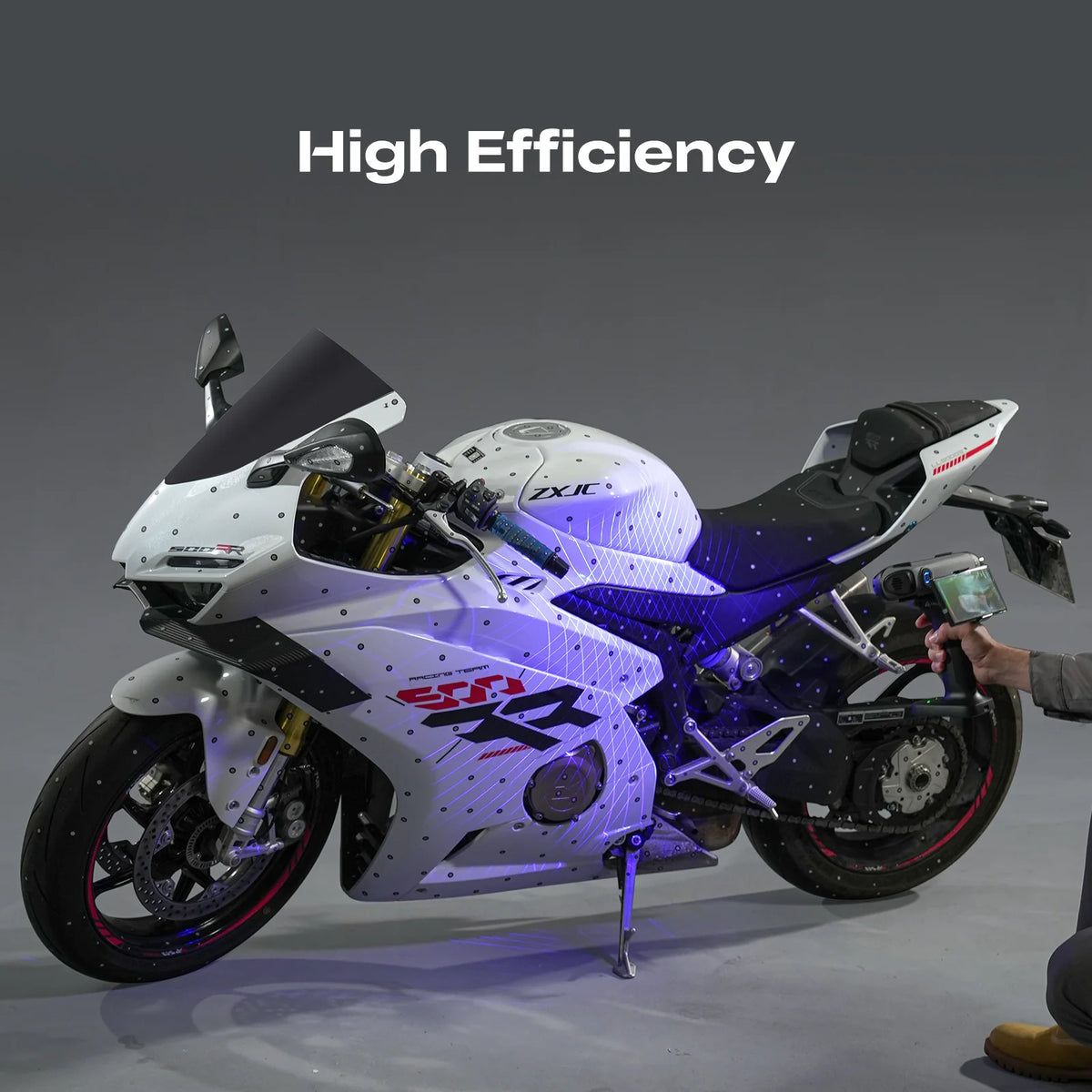

Efficient Scanning at Large Scale
A larger single-frame FOV reduces the number of required markers, improves tracking stability, and significantly enhances scanning efficiency.
Line laser maximum: 506mmx433mm at600mm
Infrared maximum: (scans a human body in as little as 1 minute)
Stable Scanning Across Indoor & Outdoor Environments.
Whether under bright outdoor light or in complete indoor darkness, the Sermoon S1 delivers consistent performance.
· Single/cross-line laser: ≤100k lux
· 7-line laser: ≤50k lux

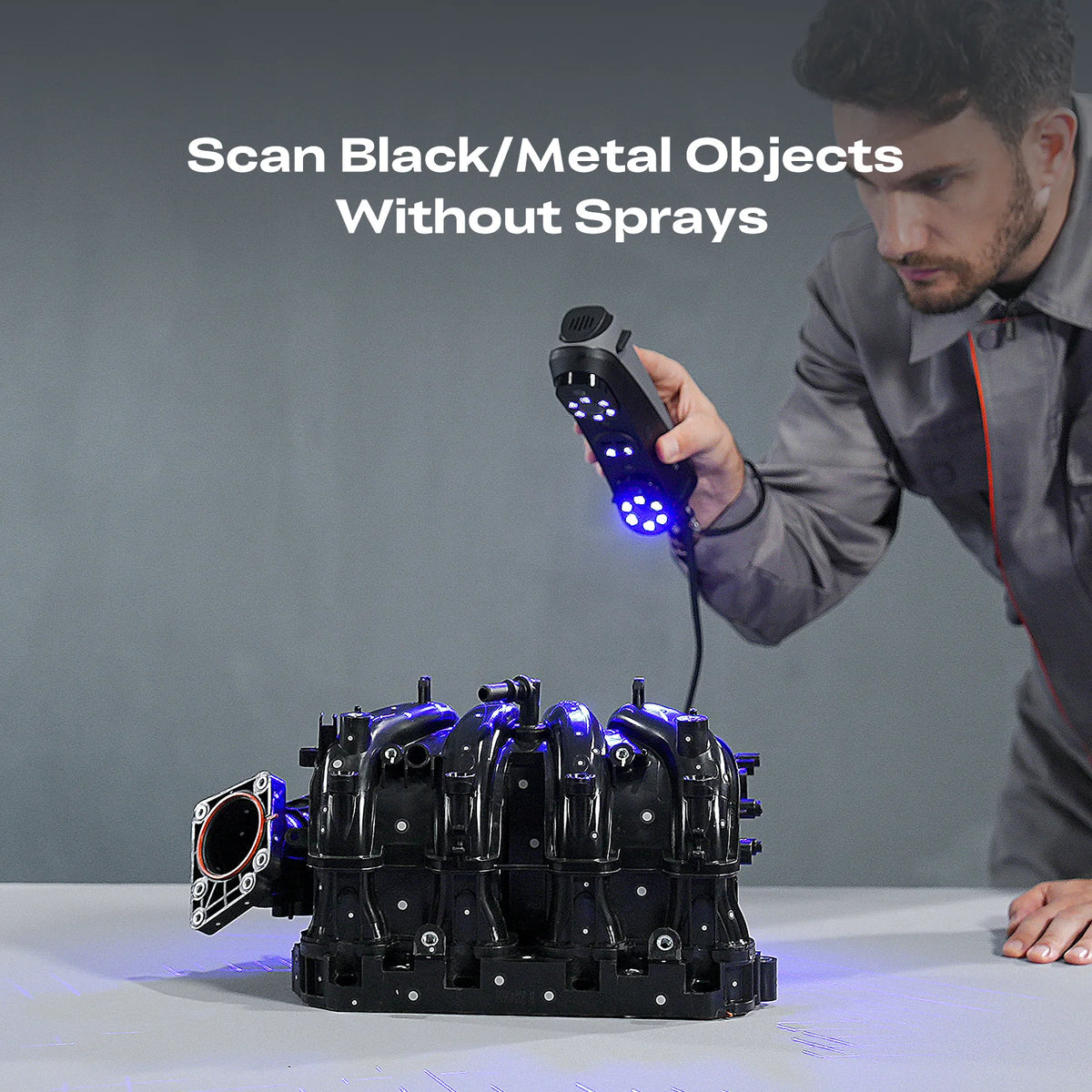

Scan Black/Metal Objects Without Sprays
Designed to scan black and metal objects with high detail, minimizing the need for scanning sprays or surface treatment.
Scanning Range 5 mm³ - 4000 mm³
With a hybrid system combining blue laser lines and infrared structured light, the Sermoon S1 supports a wide scanning range-from as small as 5 × 5 × 5 mm³ to as large as 4000 × 4000 × 4000 mm³. Ideal for automotive components, coins, bolts, figurines, or even the human body.
Built for professional scanning workflows.
From industrial components to digital modeling, Sermoon S1 helps convert physical objects into usable digital assets.
Reverse Engineering
Capture existing parts and convert them into usable 3D data for redesign, repair and reproduction.
Inspection & Measurement
Scan physical components for comparison, inspection, documentation and dimensional reference.
3D Printing Workflow
Scan real objects, process the mesh and prepare digital files for modification or 3D printing.
Technical Specifications
Core scanner information for professional evaluation and purchase reference.
| Product Name | Creality Sermoon S1 3D Scanner |
| Scanning Technology | 1 Single Blue Laser Line · 7 Parallel Blue Laser Lines · 34 Cross Blue Laser Lines · NIR Structured Light |
| Accuracy | Blue Laser: up to 0.02mm · NIR Structured Light: up to 0.075mm |
| Volumetric Accuracy | Blue Laser: 0.02mm + 0.08mm/m · NIR: 0.075mm + 0.1mm/m |
| Scanning Speed | Blue Laser: up to 90FPS · NIR Structured Light: up to 30FPS |
| 3D Resolution | Blue Laser: 0.05 - 2mm · NIR Structured Light: 0.1 - 2mm |
| Scan Volume | Minimum: 5 × 5 × 5mm · Maximum: up to 4000 × 4000 × 4000mm |
| Alignment Mode | Marker · Global Marker · Geometry · Texture |
| Color Mapping | Supported with color camera and supplemental lighting |
| Output Format | STL · OBJ · PLY · ASC |
| Software | Creality Scan software for scanning, alignment, mesh processing and export |
| Recommended Use | Reverse engineering, inspection, product design, digital archiving, repair, prototyping and 3D printing workflows |
Key Information
Core product highlights for Creality Sermoon S1 3D Scanner.
| Product Name | Creality Sermoon S1 3D Scanner |
| Scanning Technology | High-precision laser + NIR structured light |
| Main Highlights | High Detail Scanning · Easy 3D Modeling · Fast Data Capture |
| Workflow | Physical object scanning → 3D data capture → digital model → CAD / 3D printing workflow |
| Recommended For | Reverse engineering, product design, engineering parts, prototyping, inspection and digital modeling |
